R6-2 Rocker Switch Electrical rating 6A 250V AC 10A 125V AC UL, CUL, VDE, ENEC, CQC

Brand Name : LC

Model Number : R6-2

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10,000pcs per day

Delivery Time : 35 days

Certification : UL, CUL, VDE, ENEC, CQC

Product Name : Rocker Switch

Safely approval : UL, CUL, VDE, ENEC, CQC

Electrical life endurance : 10,000 cycles

Contract resistance : <20mΩ

Material of housing : PA66/PC

Ambient temperature : T85/T105

Material of contacts : Silver alloy

Material of terminal : Copper silver plated

Contact Now

R6-2 Rocker Switch Electrical rating 6A 250V AC 10A 125V AC UL, CUL, VDE, ENEC, CQC

R6 Series Specification

Safely approval: UL, CUL, VDE, ENEC, CQC

Electrical rating: 6A 250V AC, 10A 125V AC,

Mechanical life endurance: 30,000 cycles

Electrical life endurance: 10,000 cycles

Contract resistance: <20mΩ

Insulation resistance: ＞1000MΩ

Ambient temperature: T85/T105

Fire rating: UL 94V-2. UL 94V-0. Glow-wire, needle flame test.

Material of housing: PA66

Material of contacts: Silver alloy

Material of terminal: Copper silver plated

Solder ability of terminal: Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.

Part number cording rule: Choices of Switch function, Housing color, Actuator color, Marking, Terminal type can be found here.

R6-2 Rocker Switch Electrical rating 6A 250V AC 10A 125V AC UL, CUL, VDE, ENEC, CQC

Option of switch function:

Item No	Poles& Throws	Rocker position
Item No	Poles& Throws	Left	Center	Right
R61	SPST	ON	None	OFF
R62	SPST	(ON)	None	OFF

Panel cut out.

R6-2 Rocker Switch Electrical rating 6A 250V AC 10A 125V AC UL, CUL, VDE, ENEC, CQC

Panel cut-out
Z	Y	X
0.7~1.25[.028~.049]	6.95~7.05[.274~.278]	19.2~19.3[.756~.760]
1.25~2.0[.049~.079]	6.95~7.05[.274~.278]	19.25~19.35[.758~.762]
2.0~3.0[.079~.118]	6.95~7.05[.274~.278]	19.3~19.4[.760~.764]

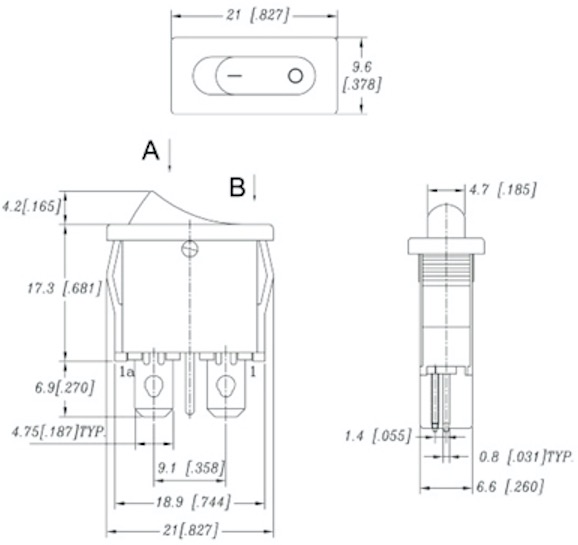

Dimension.
